Product Summary

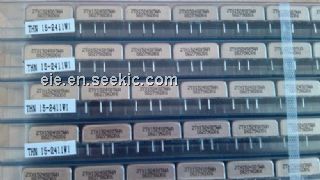

The THN-15WI  series is the latest generation of high performance dc-dc converter
modules setting new standards concerning power density. This product with 15W
comes in a encapsulated, shielded metal package with dimensions of only 1.0”x
1.0”x 0.4” and occupies 50% (!) less board space.
All models have ultra wide 4:1 input voltage range and precisely regulated output
voltages. Advanced circuit design provides high efficiency up to 87% which allows
a operating temperature range of –40°C to +85°C (with derating) Further features
include remote On/Off and trimmable output. Typical applications for these converters are battery operated equipment, mobile instrumentation, distributed power
architectures in communication and industrial electronics and everywhere where
space on PCB is critical.

Features

◆ Smallest encapsulated 15W Converter!
Ultra compact size: 1.0” x 1.0” x 0.4”
◆ Shielded metal case with isolated
baseplate
◆ Ultrawide 4:1 input ranges 9-36 VDC
or 18-75VDC
◆ Output voltage Trim
◆ I/O isolation voltage 1500 VDC
◆ Very high efficiency up to 87%
◆ Operating temp. range : –40°C to +85°C
◆ Remote On/Off control
◆ Industry standard pinout
◆ 3-year product warranty
