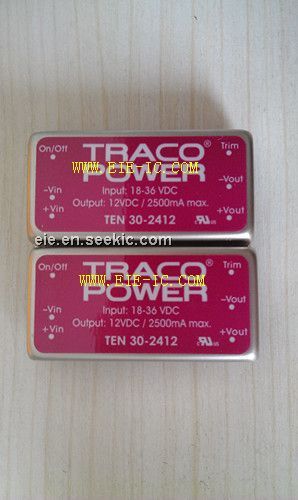

Product Summary

The TEN-30 series is the latest generation of high performance dc-dc converter
modules setting a new standard concerning power density. This product with
30W comes in an encapsulated, shielded metal package with a footprint of only
1.0” x 2.0”. All models have wide 2:1 input voltage range and precisely regulated,
isolated output voltages. Advanced circuit topology provides high efficiency up to
91% which allows an industrial operating temperature range of –40°C to +85°C
(with derating).
Further features include remote On/Off, trimmable output, under-voltage lockout
and overtemperature protection. Typical applications for these converters are mobile equipment, instrumentation, distributed power architectures in communication
and industrial electronics and everywhere where space on the PCB is critical.

Features

◆ Smallest encapsulated 30 W converter
◆ 2’’ x 1’’ x 0.4’’ shielded metal package
with isolated baseplate
◆ Single- and dual output models
◆ I/O isolation voltage 1500 VDC
◆ Excellent efficiency up to 91 %
◆ Operating temp. range –40°C to +85°C
◆ Remote On/Off
◆ Over-temperature protection
3-year product warranty
